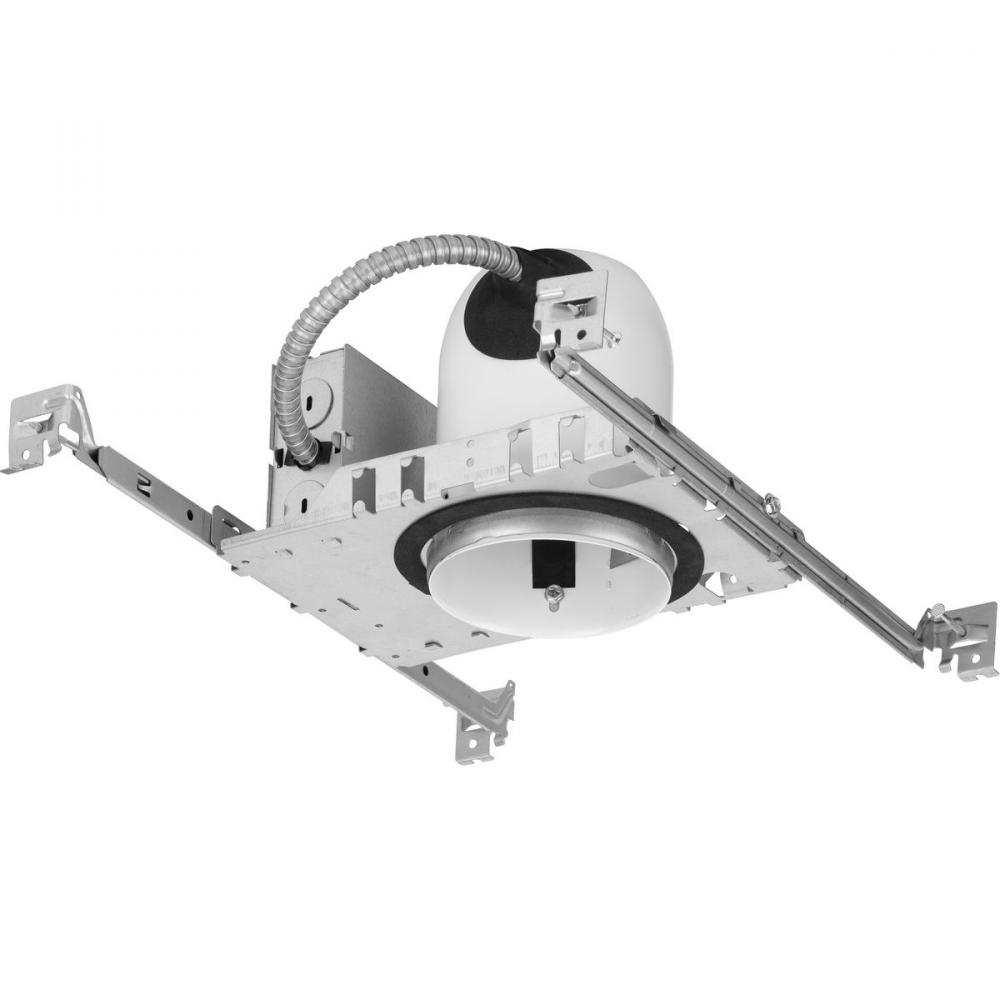

4" Air-Tight Non-IC New Construction Recessed Air-Tight Housing (P804N-N-MD-AT)
$21.50
Call For Price
Enlarge Image
Add to Cart
Description:
This 4 in. small-aperture Air-Tight Non-IC New Construction Housing provides accent and task lighting for new construction applications and is ideal for those who have easy access above the ceiling. Use with a variety of trims and finishes to create different lighting effects or match any decor. Its gasketed air-tight lamp housing prevents conditioned air from escaping into the attic space, reducing unnecessary HVAC energy usage. The lamp housing compartment can be adjusted to fit ceiling thicknesses from ½ in. to 1 ¼ in. The housing and frame are constructed from die-formed corrosion resistant galvanized steel. It features a universal J-box with snap-out sides and provided with push in connectors to make wiring quick and easy. Bar hangers have a maximum span of 24 in. and are scored in two locations for fast, clean breaking, allowing housing installation in very narrow joist spacings. Pre-installed framing nails on the bar hangers make installation quick and efficient. Hanger bars include t-bar mounting clamps for use in suspended t-grid ceilings. The integrated temperature sensor prevents lamp overheating, allowing this fixture to be used with a range of lamp shapes and wattages. It is UL and CUL listed for damp locations and Non-IC installation. The housing is compatible with a variety of trims and finishes to create different lighting effects or to easily match any decor.
Availability:
  • Manufacturer has 450 items available.
Required Components:

Optional Accessory:

Dimensions:
right arrow Height: 5.52"
right arrow Width: 8.51"
Additional Details:
right arrow Category: Recessed
right arrow Finish: Unfinished
right arrow Style: Utilitarian;Traditional;Modern;Transitional
right arrow Option: Damp Rated , Energy Efficient , Prop 65 prop65.png
right arrow Family: 4" Recessed Housing
right arrow Voltage: 120
right arrow Bulb Type: PAR20
right arrow Keyword(s): 4 inch housing recessed functional light lights lighting fixture fixtures new construction airtight residential commercial medium base bulb bulbs lamp lamps led incandescent dimmable 1 one
right arrow Length: 5.09
right arrow Material: Steel
right arrow Ship Carton Height: 5.62
right arrow Ship Carton Length: 14.00
right arrow Ship Carton Width: 11.25
right arrow Ship Weight: 2
right arrow Special Features: The housing and frame are constructed from die-formed corrosion resistant galvanized steel;Its gasketed air-tight lamp housing prevents conditioned air from escaping into the attic space, reducing unnecessary HVAC energy usage, and the lamp housing compart
right arrow Warranty: 1-Year Limited Warranty
right arrow Weight: 2.14
right arrow Bulb Base: E26
right arrow Bulb Included: No
right arrow Can be Mounted Up or Down: No
right arrow Certified Listed Location: Damp Location Listed
right arrow Construction Material Main Part: Housing
right arrow Construction Material Secondary: Steel
right arrow Construction Material Secondary part: construction
right arrow Convertible Fixture Includes Both Mounts: No
right arrow Country of Origin: CN
right arrow Dark Sky: No
right arrow Energy Efficient: Yes
right arrow Energy Star: No
right arrow Finish Type: Unfinished
right arrow Grounded Convenience Outlet included: No
right arrow JA8: No
right arrow Lamp Type Basic: Incandescent
right arrow Lamp Wattage: 50
right arrow Mount Location: Ceiling joists, or in suspended Ceilings
right arrow Post Top Fits Standard: No
right arrow Prop 65: Yes
right arrow Prop 65 Description: Reproductive Harm, Cancer
right arrow Quick Install Canopy: No
right arrow Quick Link Connector: No
right arrow Room Type: Bathroom;Bedroom;Bonus Room;Closets;Garage;Great Room;Kitchen;Living Room;Laundry;Utility
right arrow Safety Rating: cULus
right arrow Title 24: No
right arrow Weight of Fixture Exceeds NEC Limits: No
right arrow Standard Category: Recessed Ltg.
right arrow Standard Subcategory: Recessed Housing New
right arrow Standard Style: Traditional
right arrow Standard Option: Energy Efficient , Damp Rated , Prop 65 prop65.png
right arrow Standard Voltage: 100-120
right arrow Standard Mount Type: Flush Mount
right arrow Standard Location Rating: Damp Rated
Vendor Item #:
P804N-N-MD-AT
