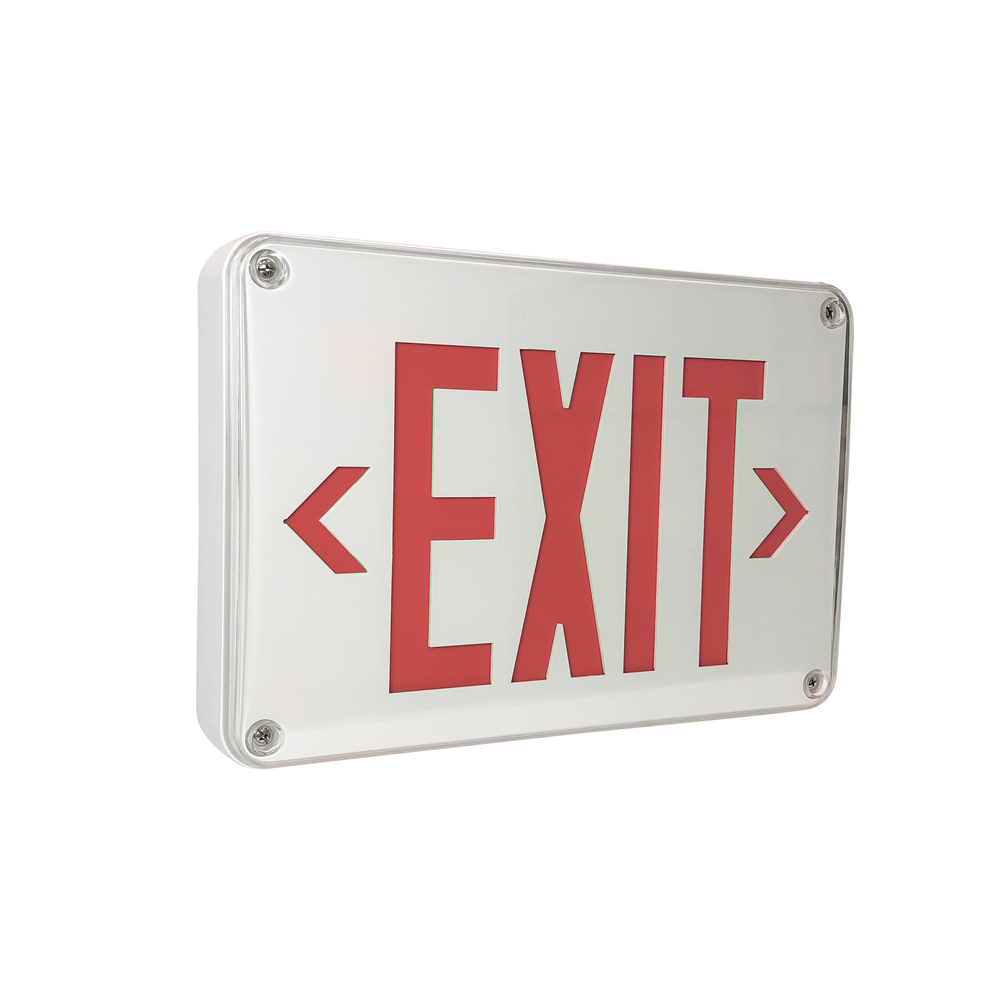

LED Self-Diagnostic Wet Location Exit Sign w/ Battery Backup, White Housing w/ 6" Red Letters (NX-617-LED/R)

$145.90

Call For Price

Add to Cart

Description:

LED exit sign with 6" red letters and white housing; battery backup for illumination during power loss. Luminaire is powered by LED sources for maximum life without maintenance. Ideal for egress lighting where splashing, non-corrosive liquids and dripping may occur. Battery Backup.
Input Voltage: 120/277VAC
Wattage: 2.4W
Finish: White
Face: Impact resistant polycarbonate white face plate with flame retardant and internal gasket for wet location rating. Optional dual face plate included. Fully illuminated 6" Red letters with 3/4" stroke and field selectable directional chevrons included.
Testing: Luminaire includes manual test button for manual verification the transfer circuit and battery operate correctly. Luminaire also performs self tests and diagnostics on battery, charging board, transfer circuit and exit sign. If a failure is detected, an indicator LED will blink red until fault is corrected. A solid green indicator LED indicates no faults and blinked green indicates a test is in progress.
Mounting: Wall, side, or ceilling mount. All mounting hardware included
Listing: cULus Listed for Wet Locations, UL 924, Title 20, NFPA 70, NFPA 101

Availability:

Manufacturer has 221 items available.

Required Components:

Optional Accessory:

Dimensions:

Height: 8.88"

Width: 13.00"

Additional Details:

Finish: White
right arrow

Category: Exit / Emergency
right arrow

Product Line: 5010
right arrow

Est. Shipping Wt.: 7
right arrow

Length: 2.5
right arrow

Ship Carton Height: 9.125
right arrow

Ship Carton Length: 13.5
right arrow

Ship Carton Width: 3.5
right arrow

Weight: 3.9
right arrow

Battery Quantity: 1
right arrow

Battery Type: Nickel- Cadmium
right arrow

Contains Battery: Y
right arrow

Country of Origin: CHN
right arrow

DLC Listed: No
right arrow

Master Box H: 10
right arrow

Master Box L: 22
right arrow

Master Box Qty: 6
right arrow

Master Box W: 15
right arrow

Master Box Wt.: 32
right arrow

Product Family: EXIT
right arrow

Safety Listing: UL 924, NFPA 70 / NFPA-101, Title 20
right arrow

Wattage: 2.4W
right arrow

Standard Category: Utility
right arrow

Standard Subcategory: Exit Signs
right arrow

Standard Finish: White

Vendor Item #:

NX-617-LED/R
